COB P1.25 LED Display Module 320x160mm Flip-Chip Technology IP65 Waterproof Dustproof Magnetic Mount Seamless Splicing Energy Saving Low Maintenance SMD Alternative
Indoor COB P1.25 LED Display Specifications:
| Pixel Pitch | P1.25 | P1.53mm | P1.86mm |
| Pixel Density | 640,000 px/㎡ | 422,753 px/㎡ | 288,906 px/㎡ |
| LED Chip | Flip Chip |
| Module Size (W*H) | 320*160mm |
| Module Resolution | 256*128 dots | 208*104 dots | 172*86 dots |
| Surface Treatment | Matt COB |
| Surface Hardness | 4H |
| Panel Size (W*H*D) | 640mm*480mm*59mm |
| Panel Weight | 7.5 kg / panel |
Panel Resolution
(dots) | 512*384 | 416*312 | 344*258 |
| Material | Die-casting Aluminium |
| Circuit Design | Common Anode Circuit |
| Flash Correction Storage | Applicable |
| Brightness | Standard 600nits |
| Refresh Rate | 3840Hz |
| Contrast Ratio | 10000:1 (Condition without lighting) |
| Color Temperature | 9300K (Standard) |
| Viewing Angle | H160°, V160° |
| Input Voltage | AC 100~240V 50/60Hz |
Max. Power Consumption
(White Balance 600nits) | 135 w/panel | 88 w/panel | 88 w/panel |
| Maintenance Way | Front Service |
| IP level of PCB serface | IP54 (Washable by clean water) |
| Lifetime at 50% Brightness | 100,000 hours |
| Operating Temperature / Humidity | -10°C-+40°C/10%RH-90%RH |
| Stroage Temperature / Humidity | -20°C-+60°C/10%RH-90%RH |
| Certificate | CCC, EMC CLASS-A, ROHS, CQC |
| Application | Indoor |
| Warranty | 3 years |
COB LED Display Modules Advantages:
1. Superior Protection
Our SMD technology delivers exceptional resistance to shock, dust, and moisture, ensuring industry-leading reliability with an ultra-low failure rate.
2. Low-Maintenance Design
COB modules feature a smooth, wipeable surface ideal for touch applications, minimizing cleaning frequency while maximizing display longevity.
3. Military-Grade Durability
COB encapsulation shields pixels from physical impacts, environmental contaminants, and humidity, enabling UHD performance in harsh installations.
4. Interactive Touch Capability (optional)
Upgrade with rental-ready multitouch frames to transform any display into a high-brightness interactive experience.
5. Complete Turnkey Solutions
Bundled configurations available with touch frames, mobile floor stands, and wall-mount kits for seamless deployment.
6. Tool-Free Modular Assembly
Patented cable-free design enables rapid installation with perfect alignment—modules snap together in minutes.
320 X 160mm flip-chip COB modules, a powerful substitute for traditional SMD !
1. Universal 320 *160mm size & module holes；
2. Matte Surface, non-reflective, higher contrast；
3. Higher precision PWM driver lC, more natural gray scale；
4. Low voltage driving mode, lower power consumption.

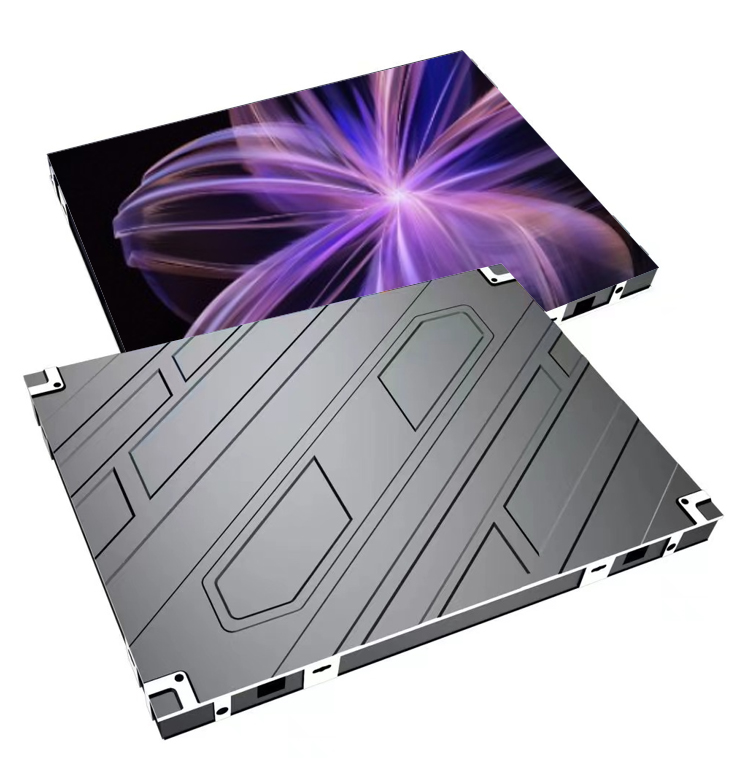

COB Cabinet Dimensions:
Indoor COB P1.25 LED Display Key Features:
1. Compatibie with many modules;
2. Hlgh accuracy;
3. Support module magnetic suction；
4. Qulck installation；
5. Compatible with cabinet sizes: 640×480mm, 960×480mm, 640×640mm, 640×320mm, 320×640mm, 320×480mm, and 320×160mm.
